Outdoor concerts in UAE combine technical complexity with environmental challenges.
Unlike indoor venues, open-air events rely entirely on temporary power systems that must operate safely, efficiently, and without interruption in harsh weather conditions.
This guide from Glow Power Rental outlines every critical phase of event power preparation, aligning with BS 7909 and the UAE regulatory framework, including the standards of Dubai Civil Defense (DFCD), Abu Dhabi Civil Defence Authority (ADCDA), Sharjah Civil Defence, and local municipal regulations across the Emirates to ensure performance reliability, safety, and compliance.
Phase 1 – Initial Power Assessment and Planning
1. Conduct a Detailed Load Analysis
Identify all connected electrical loads before sizing your power equipment.
Key Load Categories:
- Stage and audio systems
- Lighting and control equipment
- LED screens and video systems
- Vendor and F&B supplies
- Cooling and air-conditioning systems
- Security, ticketing, and admin operations
Outdoor events across the UAE typically require 20–30% higher power capacity to compensate for cooling demands and environmental stress caused by high ambient temperatures.
| Load Type | Typical Consumption | Notes |
|---|---|---|
| Audio & Sound | 40–60 kW | Continuous load |
| Lighting | 60–100 kW | Include control and dimming |
| LED Screens | 30–70 kW | High transient draw |
| Vendors | 10–20 kW | Often variable |
| Cooling Systems | 50–80 kW | High Startup Load & Continuous load |
| Ancillary | 10–15 kW | Admin, ticketing, signage |
2. Conduct a Comprehensive Site Survey
Engage a qualified professional installer at least 8–12 weeks before the event.
Survey Parameters:
- Access for generator transport and fuel trucks
- Cable routing and voltage drop mapping
- Fire and safety buffer distances
- Drainage and site elevation (rainwater protection)
- Environmental exposure to dust, sand, or humidity
- Civil Defense restrictions on fuel storage and cable crossings
Beachfront and desert sites require IP65-rated electrical gear and elevated generator bases to prevent water ingress.
3. Develop a Power Distribution Plan
Segment power by functional zones for redundancy and control.
Distribution Segments:
- Main stage and FOH (Front of House)
- Lighting control and video
- Vendor and catering area
- Cooling and comfort systems
- Emergency services and communication
Design Principles:
- Short, balanced cable runs
- Clearly labeled DBs and circuits
- Cable protection along walkways
- Separate earth connections for each major load cluster
Phase 2 – Equipment Selection and Procurement

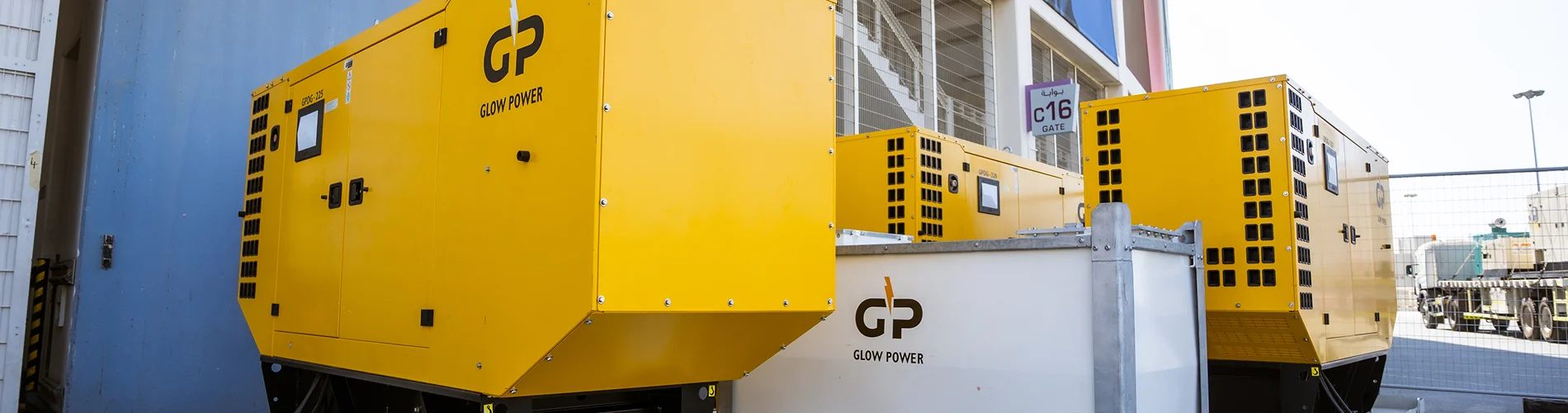

4. Generator Capacity and Configuration
Size generators at 125–150% of total calculated load to maintain stability and reserve margin.
| Event Scale | Estimated Load | Typical Configuration |
|---|---|---|
| Small Concert | 100–150 kVA | 1 × 200 kVA generator |
| Medium Festival | 300–600 kVA | 2 × 400 kVA in parallel |
| Large Multi-Day Event | 800–1500 kVA+ | Multiple synchronized units |
Parallel operation benefits:
- Load sharing and redundancy
- Improved fuel efficiency under variable loads
- Flexibility in positioning and routing
For reliable power solutions suited to the UAE climate, explore Generator Rental Services

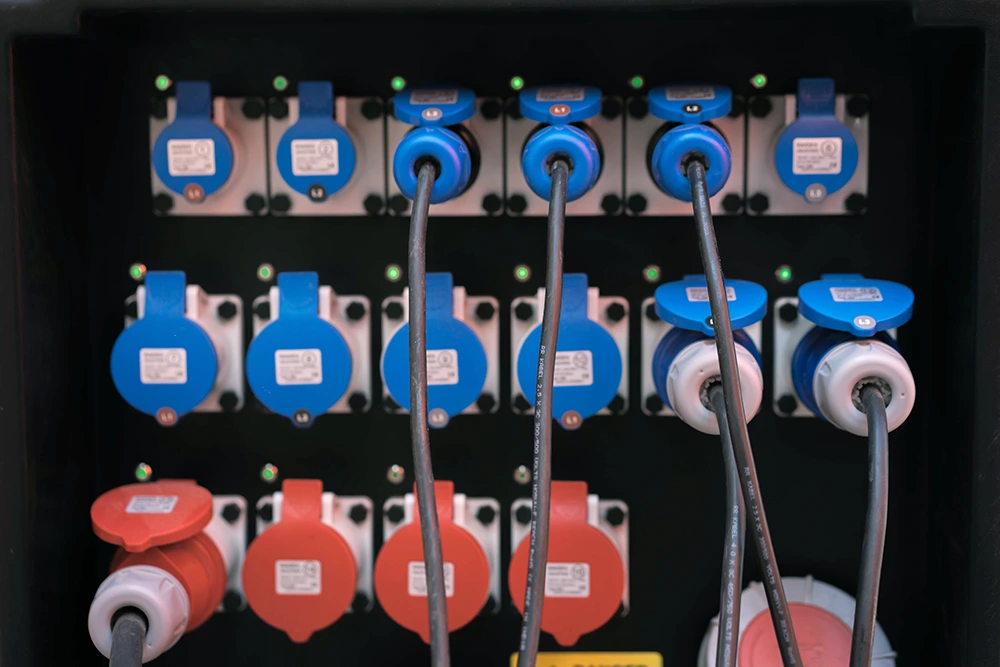

5. Distribution and Protection Equipment
All outdoor DBs should meet IP65 minimum rating and include:
- Over current and residual current protection (RCD)
- Lockable isolators for maintenance
- Clearly labeled circuits with spare capacity for contingencies
Avoid daisy-chained connections or unapproved vendor extensions.
Use professional-grade equipment such as:
- Electrical Distribution Boards
- Power Cables
- Cable Ramps
- Secondary Distribution Units — ideal for vendor, F&B, and end-user circuits
These ensure compliance, safety, and organized power segregation across your event site.
6. Lighting and Auxiliary Systems
Event lighting must serve both operational and safety functions.
Plan for:
- General site and backstage illumination
- Emergency and exit pathway lighting
- Fuel storage and refueling zone lighting
- Backup power via Automatic Transfer Switches (ATS)
LED tower lights provide lower fuel consumption and superior brightness.
See Tower Light Rentals
Phase 3 – Compliance, Safety, and Environmental Control
7. Adhere to BS 7909 Standards
Compliance with BS 7909:2011 ensures that temporary power systems are designed, verified, and documented for safe operation.
All electrical work should be completed and verified by qualified professionals experienced in event power systems.
| Compliance Aspect | Reference | Description |
|---|---|---|
| Design and Load Schedule | BS 7909 / DFCD / ADCDA | Load balancing and circuit planning |
| Installation | BS 7909 / DFCD / ADCDA | Cable routing, earthing, labeling |
| Testing and Verification | BS 7909 Forms A/B/C | Inspection, insulation, and polarity tests |
| Documentation | Local Authority | Sign-off records for inspection |
8. Health, Safety, and Fire Protection
Outdoor concerts in the UAE must comply with Civil Defense regulations—including those of Dubai (DFCD), Abu Dhabi (ADCDA), and Sharjah Civil Defense—and incorporate a formal Health, Safety & Environmental (HSE) Management Plan.
Fire and Safety Protocols:

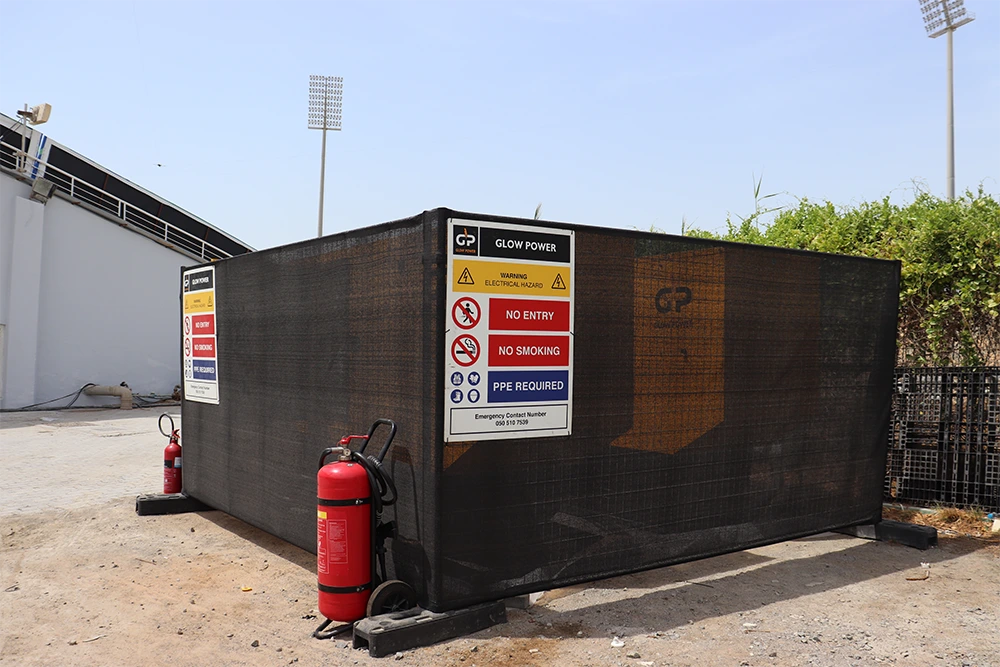

- Maintain a 3 to 5-meter buffer around generators and fuel tanks
- Provide dry powder and foam extinguishers at each generator, and CO₂ extinguishers at each distribution point
- Place extinguishers and fire blankets near fuel transfer zones

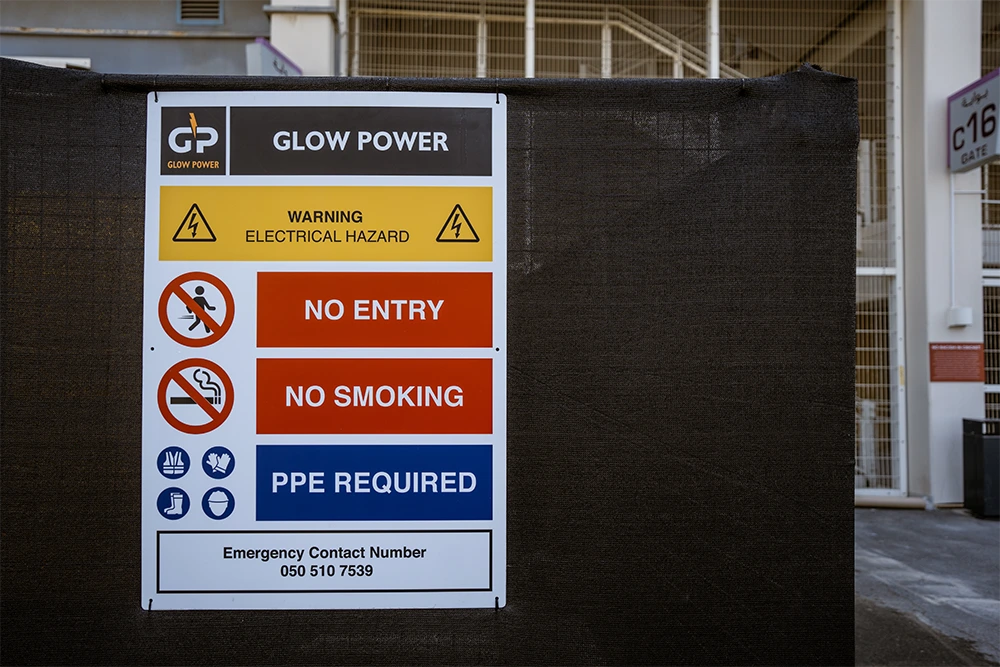

- Clearly mark and illuminate emergency exits and assembly points
Fuel Handling and Spillage Prevention:
- Store diesel in double-bunded fuel tanks approved by DFCD , ADCDA
- Use anti-spill nozzles and drip trays during refuelling
- Keep spill control kits (absorbent pads, booms, containment mats) on site
- Train personnel in emergency spill response and fire suppression procedures
Health and Environmental Considerations:
- Isolate noisy generators using acoustic barriers
- Direct exhaust outlets away from public areas
- Provide shaded rest zones and hydration points for technical staff
- Conduct toolbox safety briefings before each event day
Glow Power Rental offers Fuel Tank Rentals that comply with UAE Civil Defence containment and environmental safety requirements, including DFCD, ADCDA, and Sharjah Civil Defence standards.
Phase 4 – Logistics and Timeline Management
9. Equipment Delivery and Installation
Coordinate deliveries to match venue logistics and contractor schedules.
Best Practices:
- Deliver large generators during off-peak hours
- Use cranes or forklifts under supervision of appointed person
- Confirm DFCD safety clearance before final generator placement
- Allow 25–50% additional installation time for outdoor sites
10. Testing and Commissioning
Perform full system testing 48 hours before the event.
Testing Checklist:
- Simulate live stage and lighting loads
- Verify ATS switching sequence
- Record voltage, frequency, and load balance
- Confirm fuel system operation and monitoring
- Test emergency lighting and public address systems
All commissioning records should be available on site for inspection.
Phase 5 – Operational Readiness and Support
11. Fuel Management and Monitoring
Outdoor concerts across the UAE consume significant fuel due to continuous generator operation and high cooling demands in the region’s climate.
Fuel Plan Essentials:
- Confirm refueling schedules and supplier coordination
- Maintain 10–15% reserve capacity
- Use remote fuel-level monitoring systems
- Deploy spill containment and trained refueling supervisors
12. On-Site Technical Support and Maintenance
Maintain round-the-clock support during the event.
Support Plan:
- Qualified technicians for each generator cluster
- Service van with spare parts and tools
- Standby generator for critical areas
- Rotational shift system to prevent fatigue
Final Pre-Event Power Checklist
| Category | Task | Responsibility | Status |
|---|---|---|---|
| Load Analysis | Verify total and peak load calculations | Electrical Engineer | ☐ |
| Site Survey | Conduct pre-installation inspection | Project Manager | ☐ |
| Generator Sizing | Apply 25% operational headroom | Power Contractor | ☐ |
| Distribution Design | Label DBs and route protection | Electrical Engineer | ☐ |
| Compliance | Ensure BS 7909 and DFCD certification | Compliance Officer | ☐ |
| Fire & Safety | Deploy extinguishers and spill kits | Safety Supervisor | ☐ |
| Testing | Perform full-load and ATS test | Commissioning Engineer | ☐ |
| Fuel Plan | Establish refueling and monitoring | Operations Lead | ☐ |
| HSE Induction | Conduct toolbox safety briefing | HSE Officer | ☐ |
| On-Site Support | Assign technicians and standby units | Event Coordinator | ☐ |
Conclusion
A successful outdoor concert in the UAE depends on power reliability, safety, and full regulatory compliance.
By following BS 7909 guidelines and adhering to the standards of UAE Civil Defence authorities—including DFCD, ADCDA, and Sharjah Civil Defence—along with structured operational planning, organizers can minimize risk, ensure safety, and maintain uninterrupted event performance.
Glow Power Rental provides turnkey temporary power solutions—including certified generators, compliant distribution systems, and 24/7 on-site technical support—to ensure your event operates seamlessly from setup to final act.
